1-Way Articulating Assemblies

The Atlas Astro-Brac series is capable of concealing one 3/4” diamenter or two 5/8” diameter conduits. The internal wiring capability and 3 axis of adjustability can handle even the toughest alignment problems, making this system truly universal. Available in cable, band, and tenon mount.

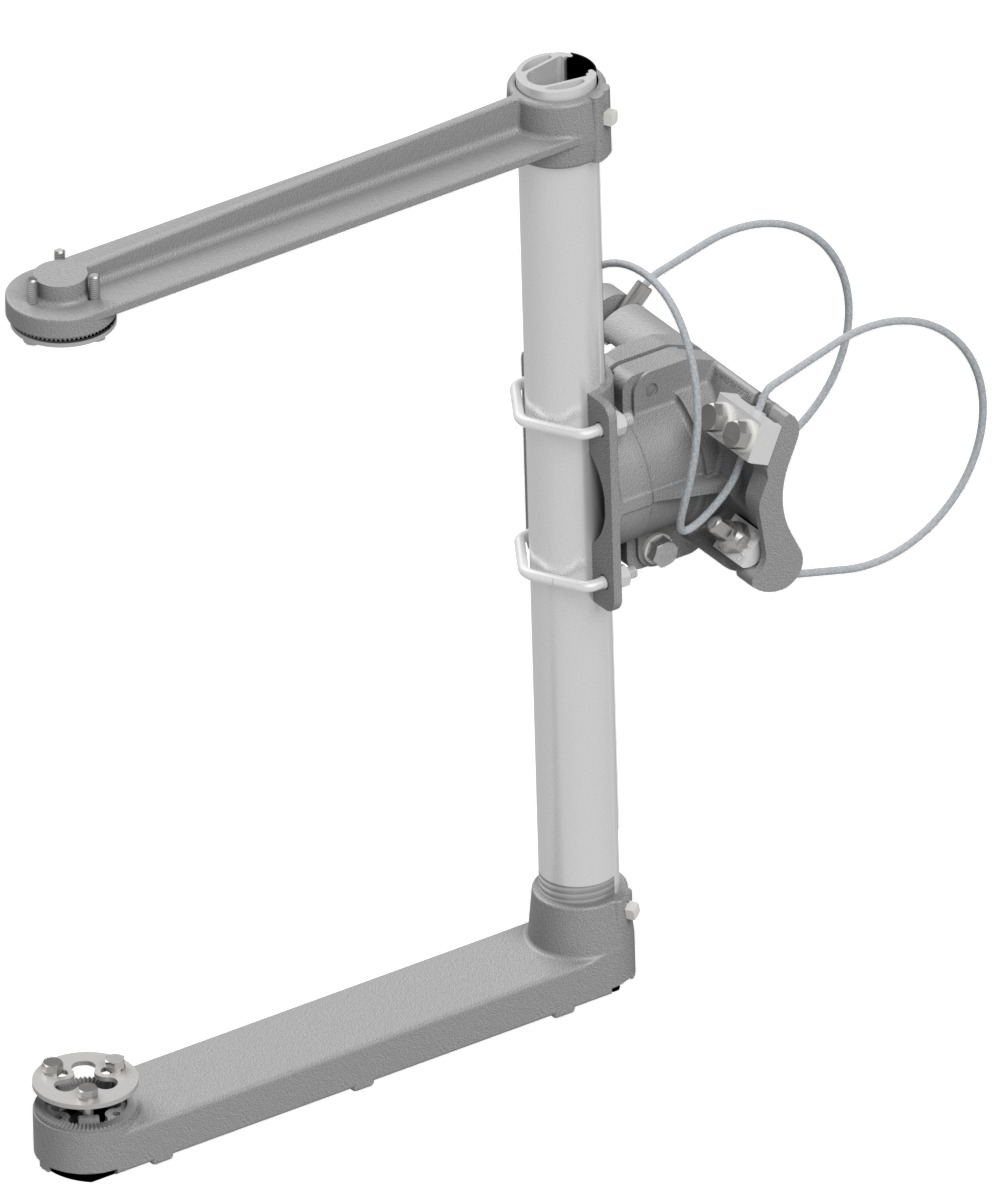

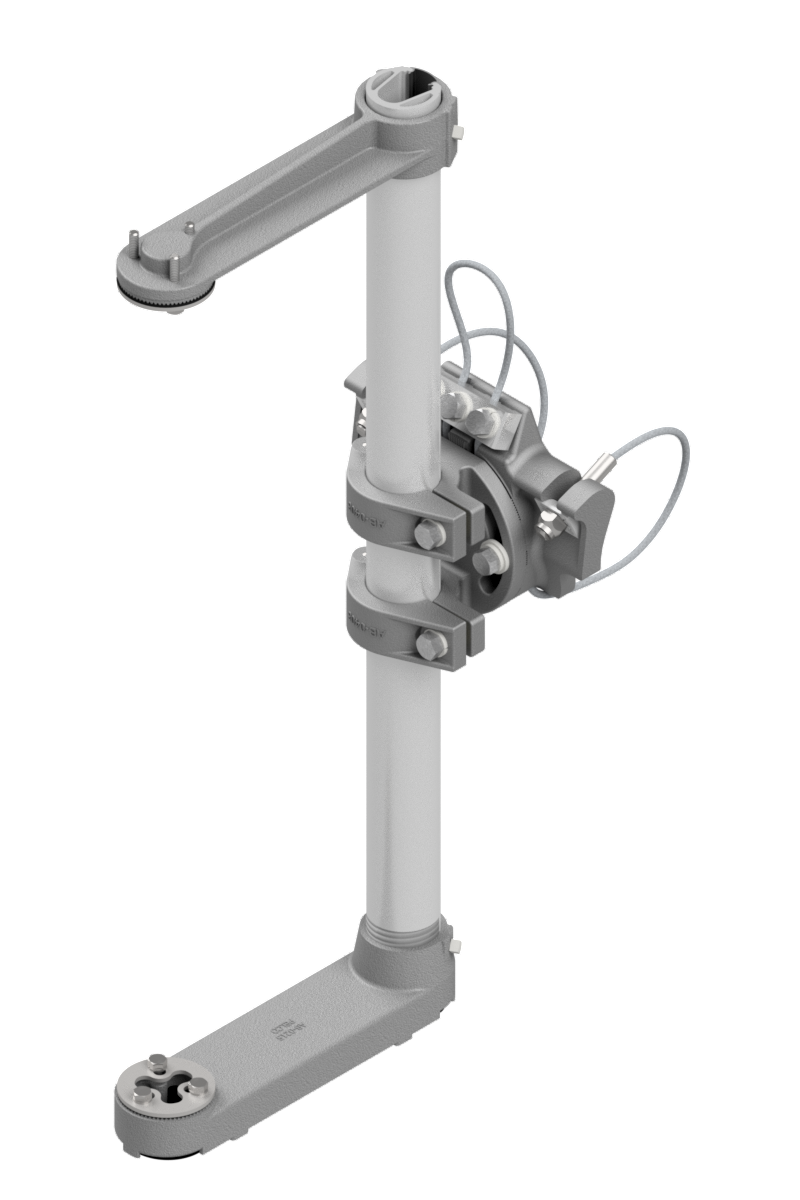

1-Way Assemblies

Designed to accommodate all traffic signals, with the exception of optically programmed. The Galaxy and Stellar Astro-Brac series feature all-axis adjustability and are designed to facilitate the mounting of any size signal to any shape mast arm or pole. The hinged clamping mechanism on the Galaxy provides for an easy convenient installation.

1-Way Astro-Brac Arm Kits

All Pelco arm kits are durable aluminum alloy castings. Various styles are available to fit any manufacturers signal. They allow positive positioning of the signal head without misalignment. Supplied complete with stainless steel hardware and wire covers.

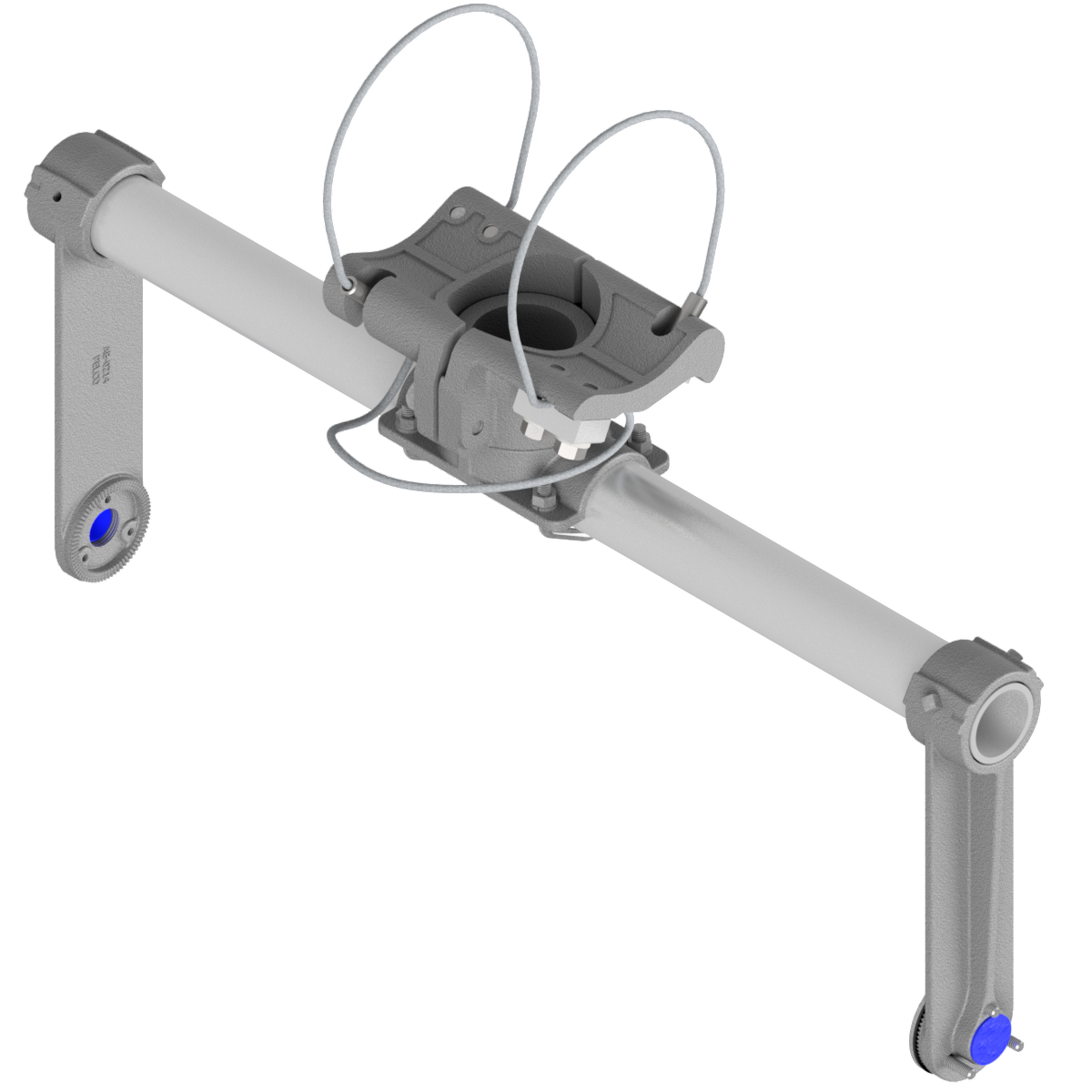

1-Way Horizontal Assemblies

The Astro-Brac easily adapts to mount signals horizontally from a mast arm. The Stellar series all-axis adjustability allows for unique alignment of the signal. Available in both cable and band mount.

1-Way OPS Assemblies

Designed to accommodate optically programmed signal heads. The Galaxy and Stellar Astro-Brac series features all-axis adjustability and is designed to facilitate the mounting of any size OPS signal to any shape of mast arm or pole. The hinged clamping mechanism on the Galaxy provides for an easy convenient installation.

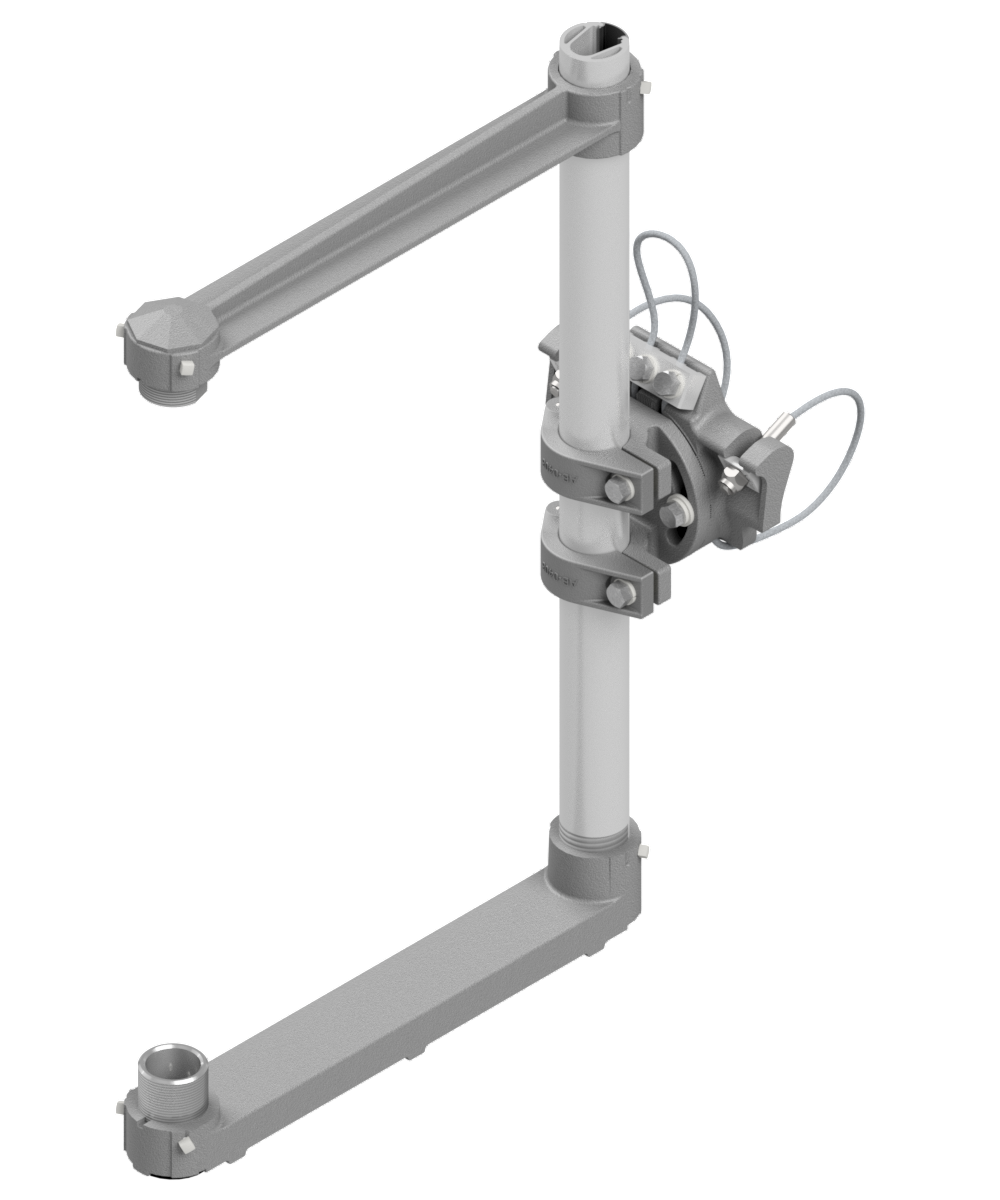

1-Way Pedestrian Assemblies

With the extended arms this bracket assembly is designed to accommodate the pedestrian signal. The Stellar Astro-Brac features all-axis adjustability and is designed to facilitate the mounting of a ped signal to any shape pole.

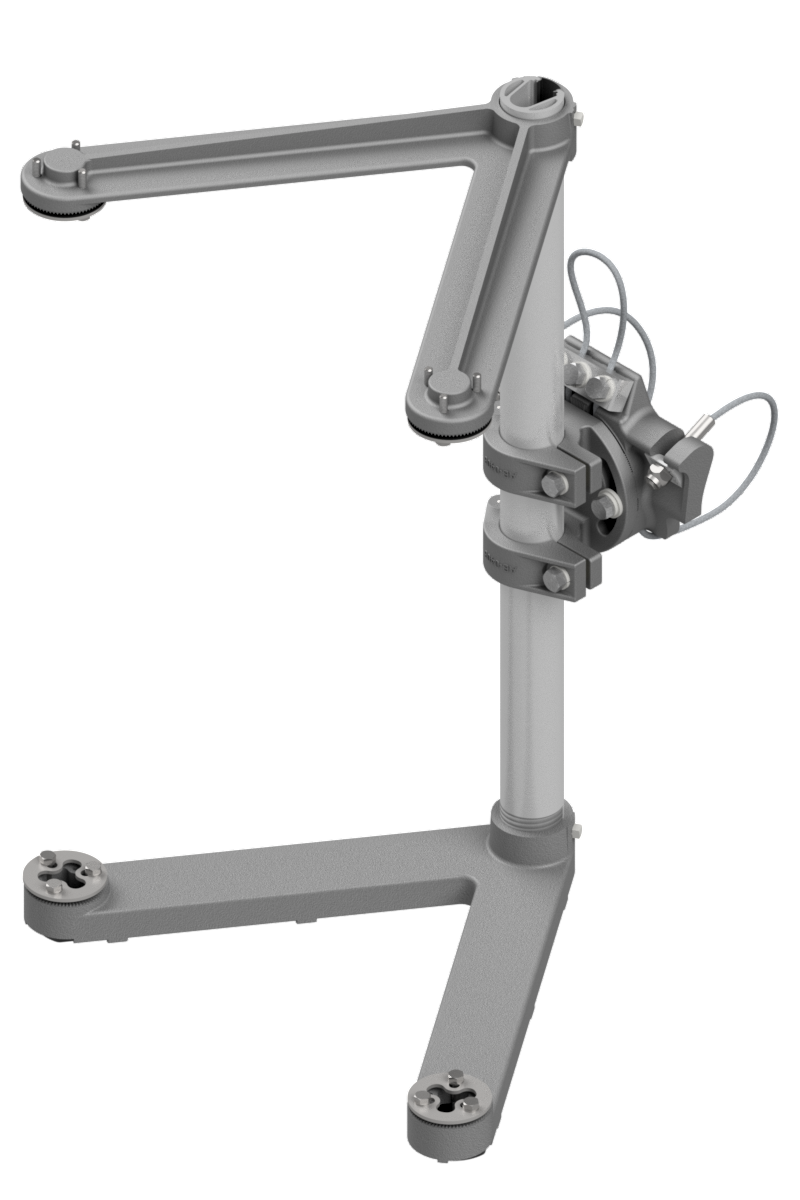

2-Way Assemblies

Designed to accommodate all traffic signals, with the exception of optically programmed. The Galaxy and Stellar Astro-Brac series feature all-axis adjustability and are designed to facilitate the mounting of 2-way signals on any shape of mast arm or pole. The hinged clamping mechanism on the Galaxy provides for an easy convenient installation.

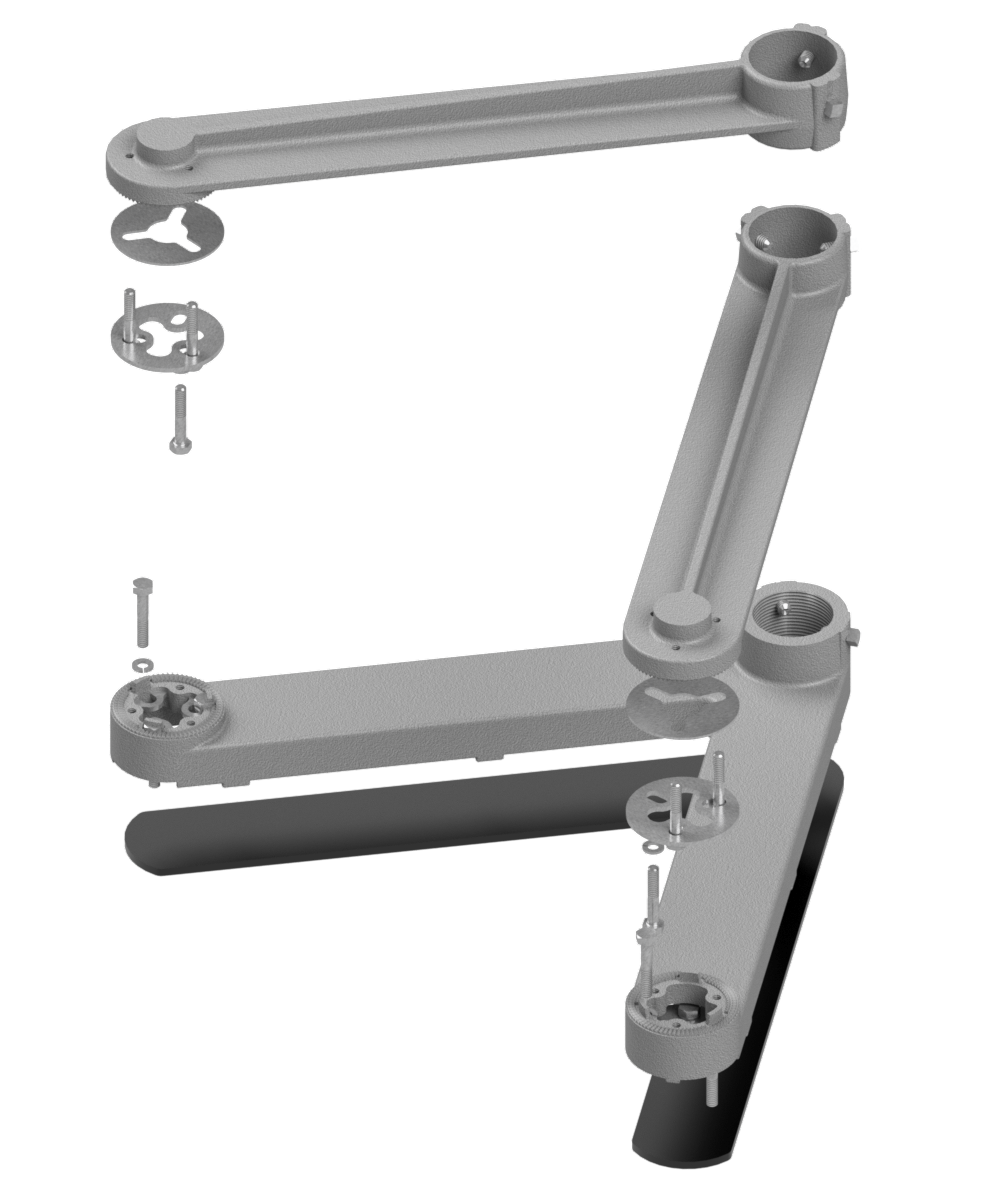

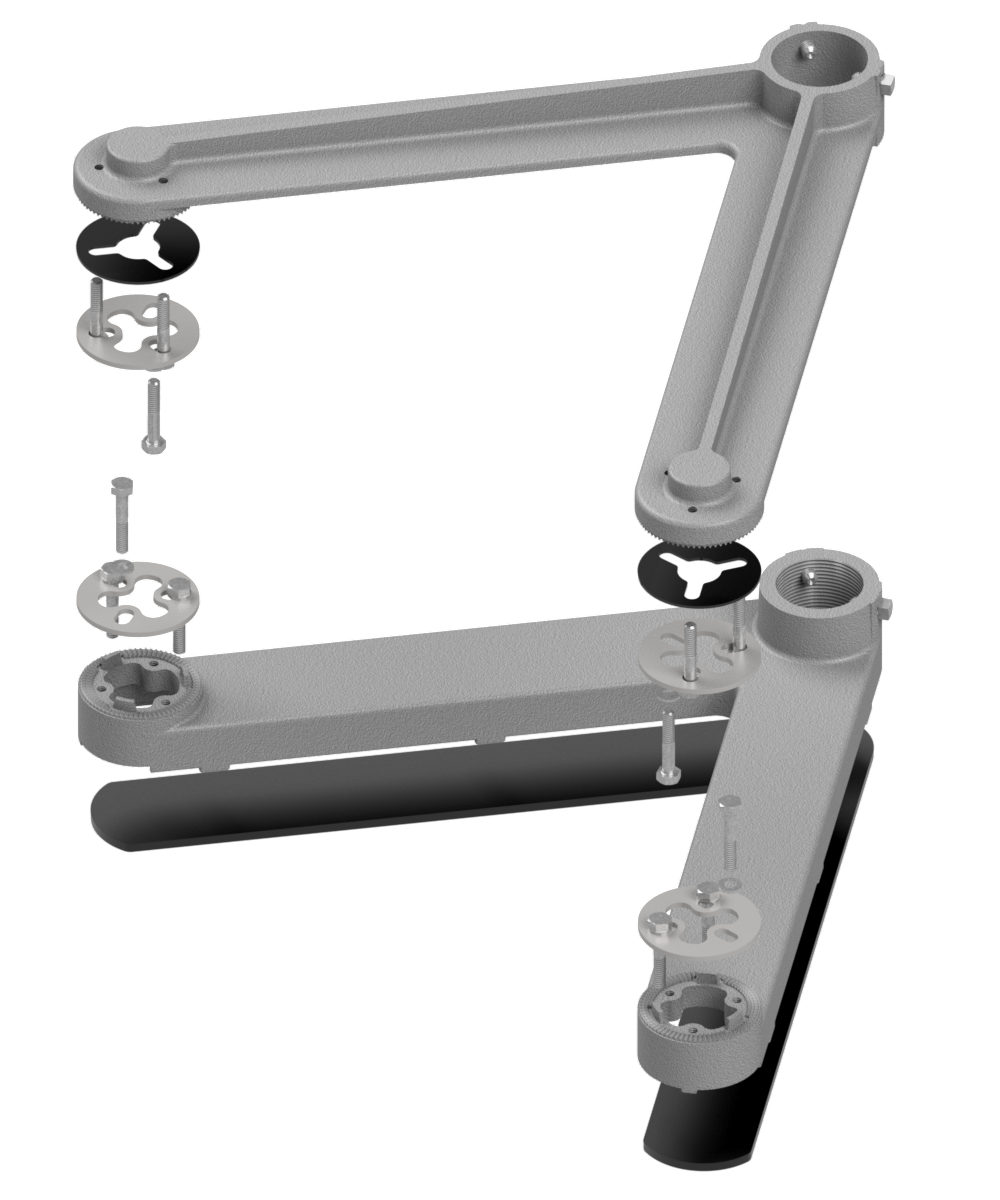

2-Way Astro-Brac Arm Kits

2-Way Pedestrian Assemblies

2-Way Variable Assemblies

Designed to accommodate all traffic signals, with the exception of optically programmed. The Galaxy and Stellar 2-Way variable assembly feature all-axis adjustability and is designed to facilitate the mounting of unbalanced signal combinations to any shape mast arm or pole. The hinged clamping mechanism on the Galaxy provides for an easy convenient installation.

2-Way Variable Astro-Brac Arm Kits

Aluminum Gusseted Tubes

Supplied in lengths shown below, Pelco’s vertical support tubing is made from high strength aluminum alloy. A unique shape and PVC insert insures a complete weather proof wiring installation anywhere along the entire length of the tube. The standard 46” tube will accommodate standard signal combinations up to 3 section 12”, with the 58” and 74” lengths for 4 and 5-section combinations. Optional tube lengths are available for mounting OPS signals.

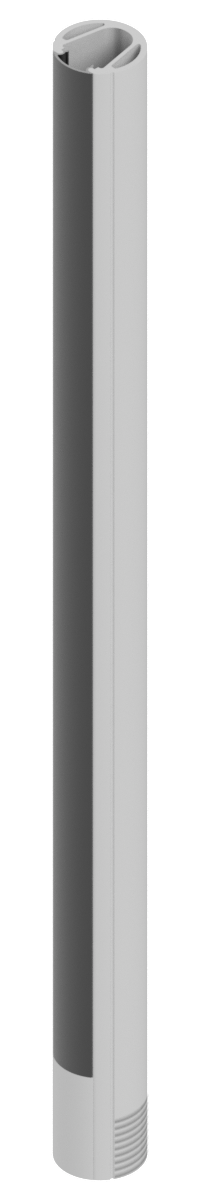

Aluminum Tubes

Supplied in lengths shown below, Pelco’s vertical support tubing is made from high strength aluminum alloy. The standard 46” tube will accommodate standard signal combinations up to 3-section 12”, with the 58” and 74” lengths for 4 and 5 section combinations. Optional tube lengths are available for mounting OPS signals.

Astro-Brac Hardware Kits

All hardware kits are supplied standard with stainless slotted washers and fasteners.

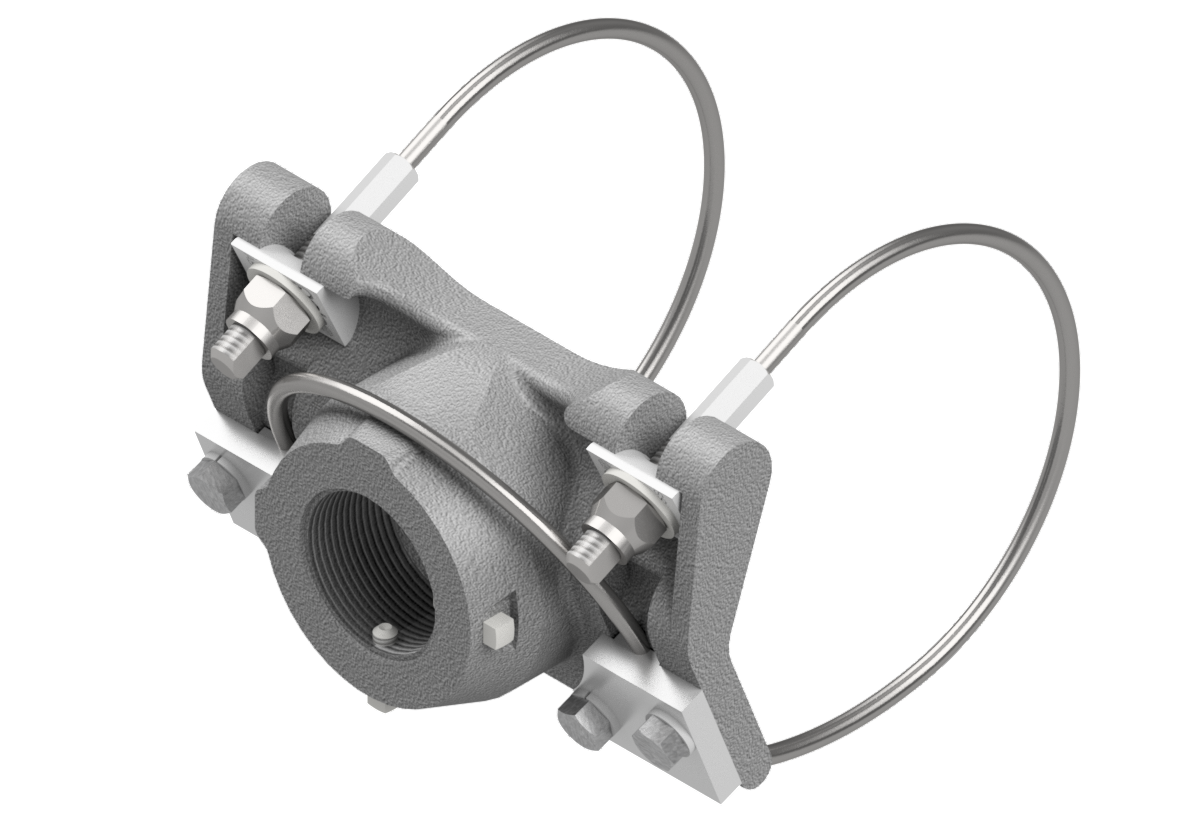

Atlas Series Clamp Kits

These aluminum serrated articulating clamp kits were specifically designed to accommodate larger conduit. The 3 axis adjustability provides complete clamping versatility. They feature stainless steel bands or high strength galvanized or stainless steel aircraft cable. Supplied complete with all necessary attaching hardware.

Band Mount Clamp Kits

These high tensile aluminum alloy clamp kits provide strength with maximum adjustability and complete clamping versatility. They feature forged galvanized clamp screws which allow easy signal mounting on any size signal pole. Supplied complete with all necessary attaching hardware.

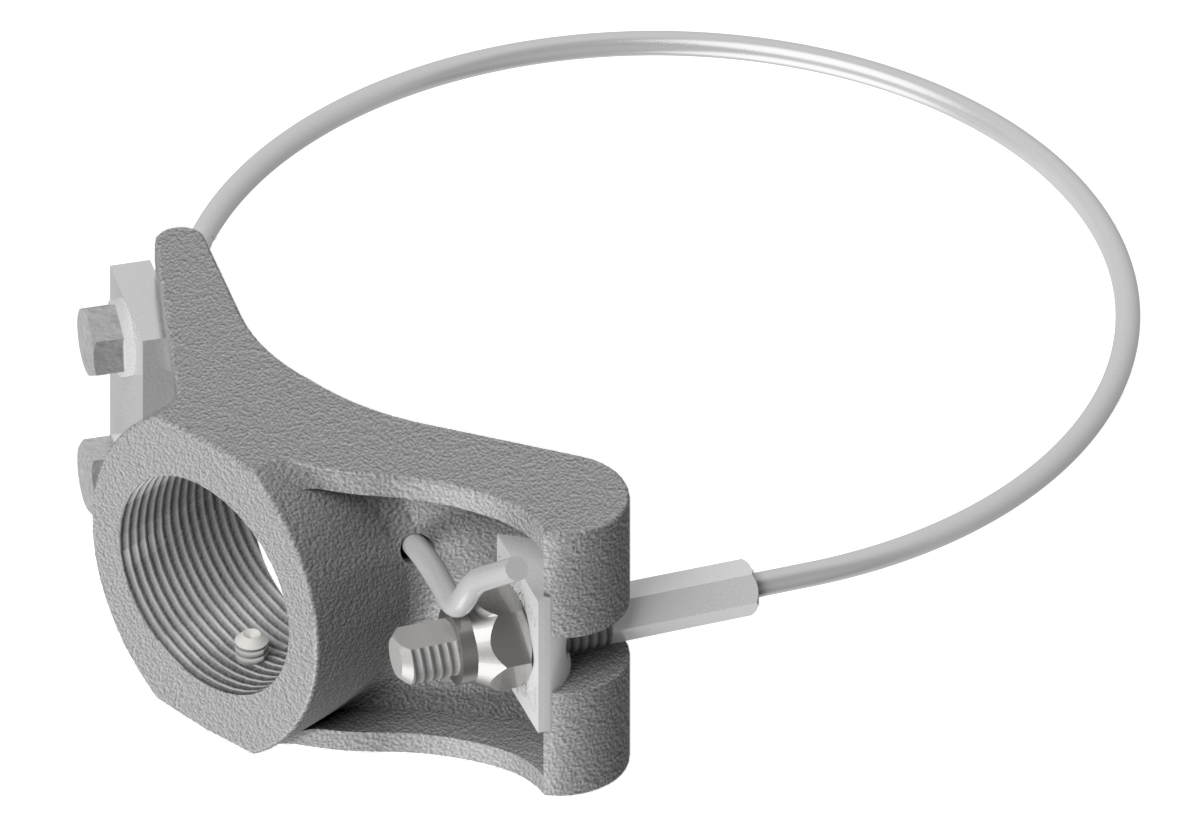

Cable Mount Clamp Kits

These high tensile aluminum alloy clamp kits provide strength with maximum adjustability and complete clamping versatility. They feature high strength galvanized or stainless steel aircraft cable. Supplied complete with all necessary attaching hardware.

Cluster Assemblies

Designed to accommodate all traffic signals, with the exception of optically programmed. The Galaxy and Stellar cluster mount features all-axis adjustability and is designed to facilitate the mounting of 5-section signal heads to any shape mast arm or pole. The hinged clamping mechanism on the Galaxy provides for an easy convenient installation.

Cluster Astro-Brac Arm Kits

Cluster OPS Assemblies

Galaxy Series Clamp Kits

The Galaxy is designed using a single cable plate which allows for easy installation, as well as the multi-directional adjustable tube saddle for strength. These high tensile aluminum alloy clamp kits provide strength with maximum adjustability and complete clamping versatility. The hinged clamping mechanism provides for an easy convenient installation. Comes complete with all necessary attaching hardware.

Mini-Brac Clamp Kits

This unique mount is a smaller version of the Astro-Brac and gives the same kind of universal application. The Astro Mini-Brac is ideal for side-of-pole or mast arm mountings for vehicle or pedestrian signals and emergency traffic signal sensors. Available in cable or band mount.

Stellar Series Clamp Kits

These high tensile aluminum alloy clamp kits provide strength with maximum adjustability and complete clamping versatility. The 2-piece clamp features a strong clamping method with quick and easy installation. Supplied with all necessary attaching hardware.

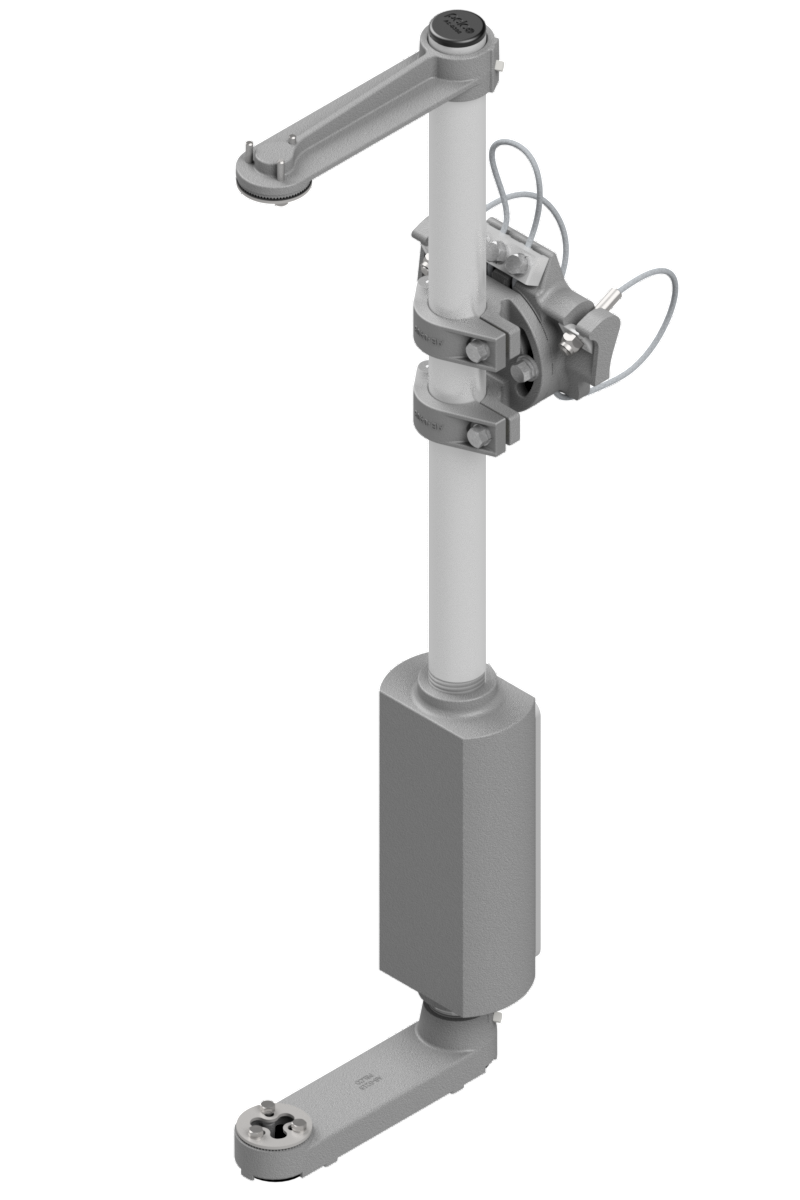

Terminal Compartment Assemblies

Pelco’s in-line Astro-Brac terminal compartment assemblies satisfy the need of a terminal compartment without sacrificing all-axis adjustability. Galaxy and Stellar series is designed to facilitate the mounting of any size signal to any shape of mast arm or pole. The hinged clamping mechanism on the Galaxy provides for an easy convenient installation.

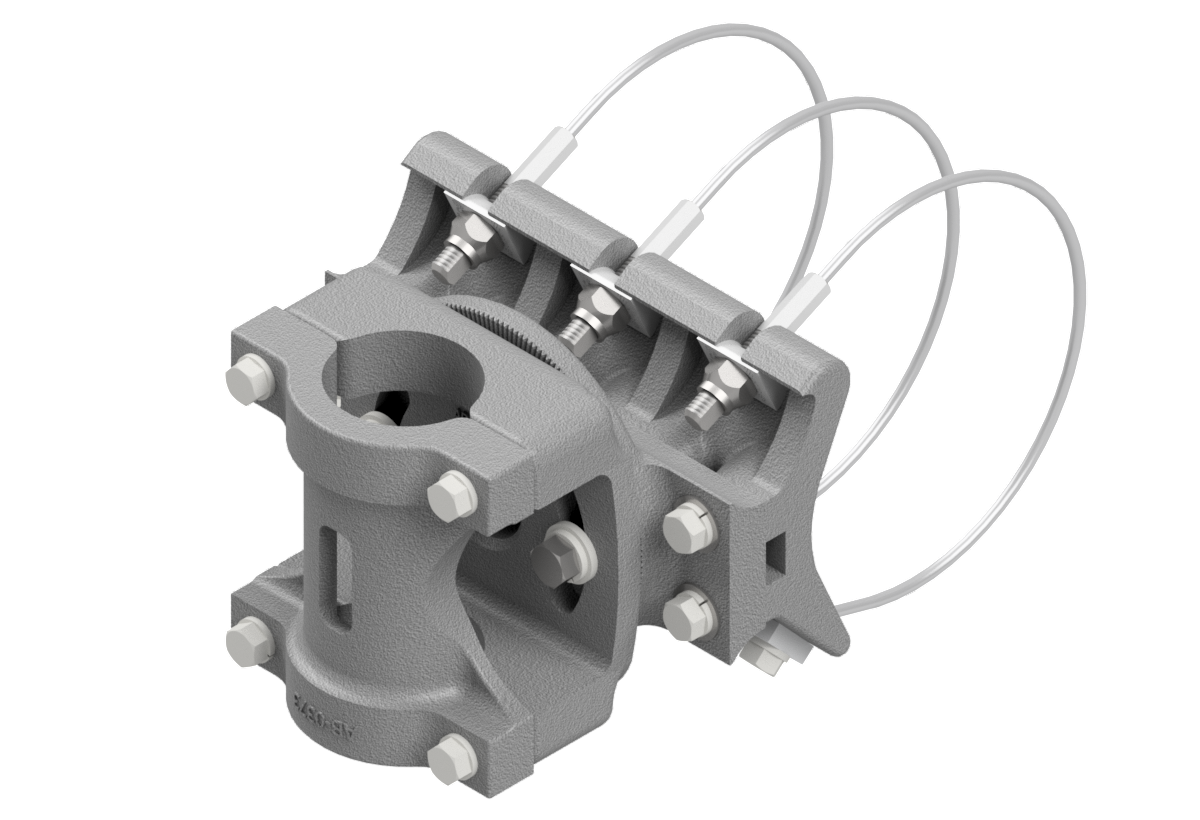

Triton Series Clamp Kits

These high tensile aluminum alloy clamp kits provide strength with maximum adjustability and complete clamping versatility. The Triton clamp kits utilize three bands or cables and are designed to be used with a 2-3/8” diameter tube. Comes complete with all necessary attaching hardware.

Variable OPS Assemblies

Designed to accommodate optically programmed signal heads. The Stellar 2-Way variable OPS assembly features all-axis adjustability and is designed to facilitate the mounting of unbalanced signal combinations to any shape mast arm or pole.
