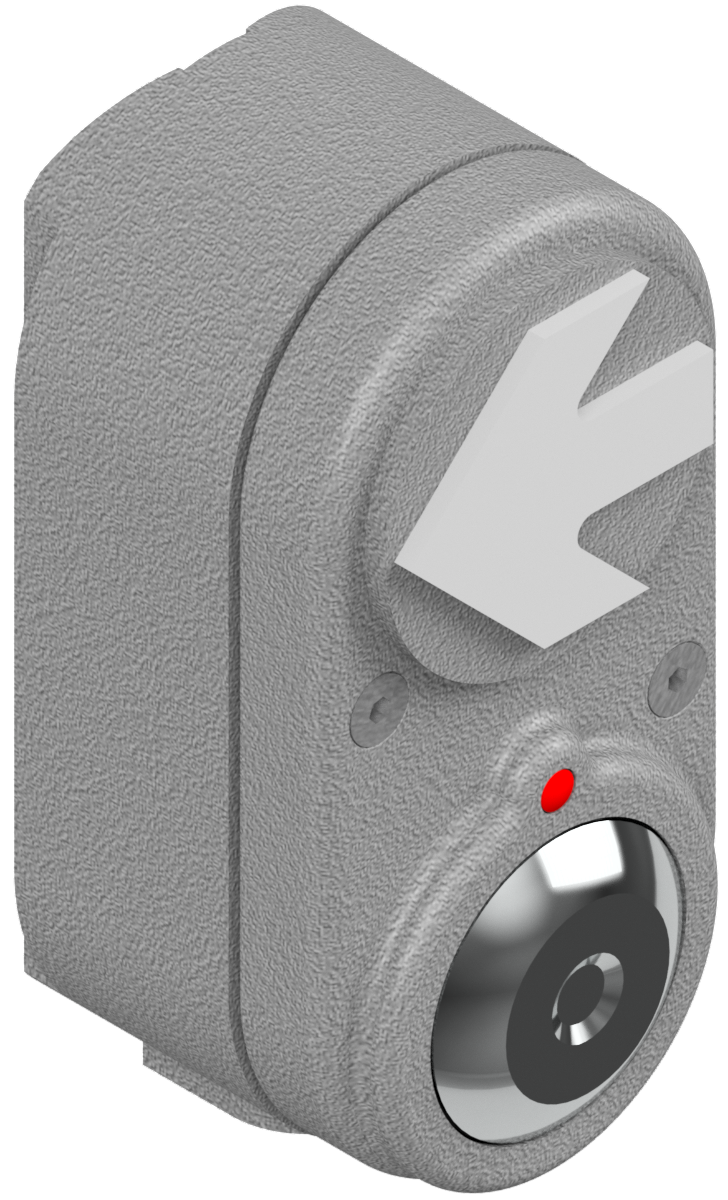

SE-2162 Push Button Assy, Pole Mount, Alum Oval w/ Directional Arrow Piezo Switch w w/ LED

Latching option requires SE-1041 Controller Assy.

SE-2162

Sample part number:

SE-2162-Blank-BlankPNC
SE-2162-Arrow-Latching-Coating

Arrow

Part Number 1 2
Description Single Arrow Double Arrow
Latching
Part Number Blank LCH
Description Non- Latching Latching
Coating
Part Number PNC P_ _
Description Process No Color Paint *see chart*

POWDER COAT STANDARD COLORS

P29 = Federal Yellow
P30 = Automatic Green (dark)
P32 = Clear Coat
P33 = Gloss Black
P34 = Flat Black
P35 = Iron Gray
P36 = New York State Green (forest)
P39 = Bronze
P40 = Silver
P45 = Super Wet White
P59 = Textured Black
P63 = Mocha Brown
P71 = Dark Green
P75 = Fir Green
P76 = Forest Green

Note:
Pelco can match your custom colors.
Please provide the following and contact Pelco for pricing.
For custom powder: RAL number or paint chip.
For wet paint: Federal Standard 595 paint code or paint chip.
Special setup and paint charge will apply.



Notes

1. All assemblies are supplied standard with stainless steel fasteners.
2. Latching units are latched on during the “Don’t Walk” cycle with the addition of the SE-1041 controller.
3. See Reference Section for available paint colors.
