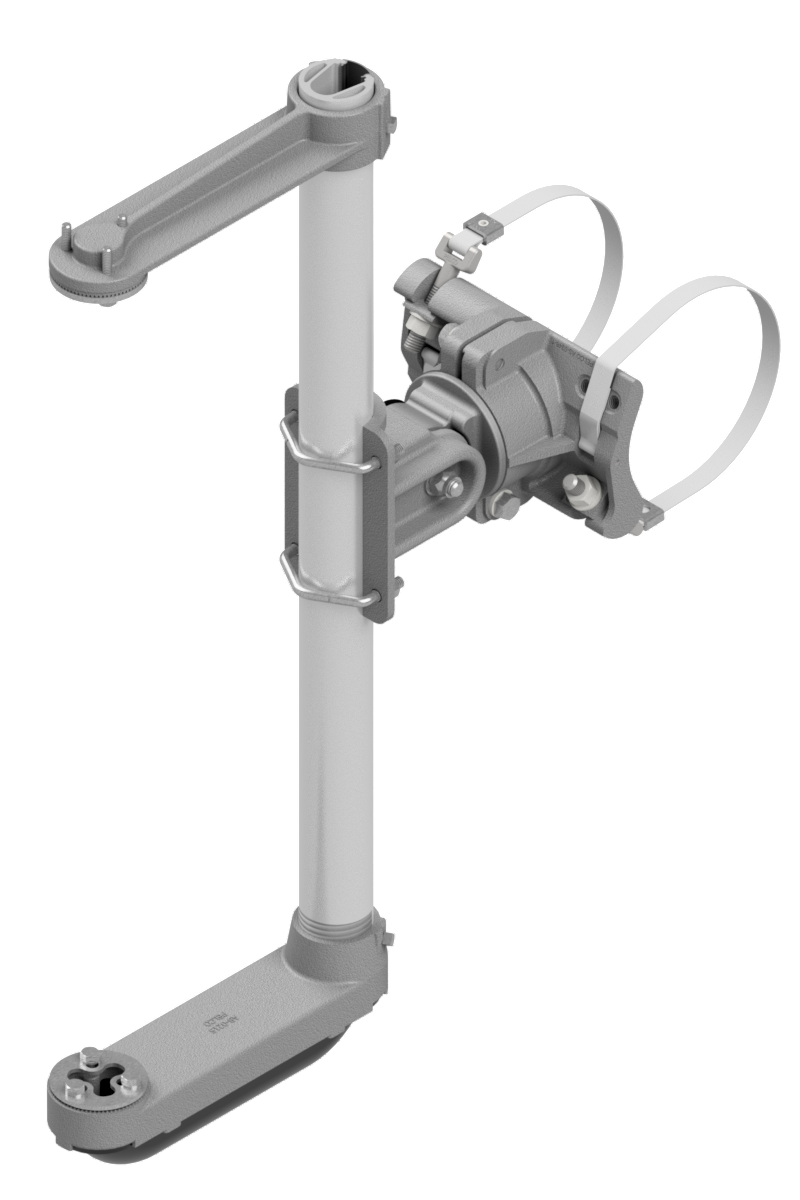

AS-0153 Astro-Brac Atlas 1-Way Articulating Assy, Band Mount

The Atlas series is capable of concealing one ¾” diameter or two ⅝” diameter conduits. The internal wiring capability and 3 axis of adjustability can handle even the toughest alignment problems, making this system truly universal. Available in stainless cable or band, and tenon mount.

AS-0153

Sample part number:

AS-0153-1-56-PNC
AS-0153 – Signal Section – Band Length – Coating

Signal Selection

Part Number 1 2 3 4 5
Tube Length 23" 37" 46" 58" 74"
Band Length

Band Length 29" 42" 56" 72" 114"
Maximum Pole Dia 7.3" 11.5" 15.9" 21.0" 34.4"
Coating
Part Number PNC P_ _
Description Process No Color Paint *see chart

POWDER COAT STANDARD COLORS

P29 = Federal Yellow
P30 = Automatic Green (dark)
P32 = Clear Coat
P33 = Gloss Black
P34 = Flat Black
P35 = Iron Gray
P36 = New York State Green (forest)
P39 = Bronze
P40 = Silver
P45 = Super Wet White
P59 = Textured Black
P63 = Mocha Brown
P71 = Dark Green
P75 = Fir Green
P76 = Forest Green

Note:
Pelco can match your custom colors.
Please provide the following and contact Pelco for pricing.
For custom powder: RAL number or paint chip.
For wet paint: Federal Standard 595 paint code or paint chip.
Special setup and paint charge will apply.

Notes

1. All assemblies are supplied standard with stainless steel cable, clamp screw, and fasteners.
2. See Reference Section for clamp kit pole diameter and tube length information.
3. See Reference Section for available paint colors.
